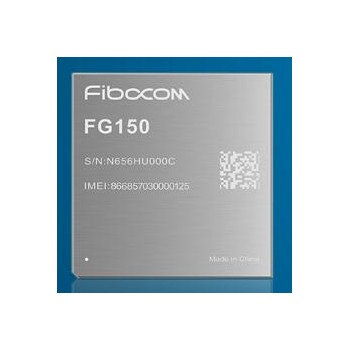

基本特性 Dimension(mm):41.00 x 44.00 x 2.75 Package:LGA LTE:Cat 20 and above LTE FDD:B1/B2/B3/B5/B7/B8/B20/B28/B32 LTE TDD:B34/B38/B39/B40/B41/B42/B43** WCDMA:B1/B2/B3/B5/B8 Operation mode:NSA & SA Antenna:6 or 8 Optional +1(GPS) Power Supply:3.3V~4.4V(Typical 3.8V) Operating Temp.:-30℃~+75℃ 接口 PCIe:PCIe 3.0 USB3.1:x 1 认证 RoHS*/Reach*/HF*/CCC*/SRRC*/CTA*/CE*/GCF*/RCM*/KCC*/Geteki*/ CMCC*/CTCC*/CUCC*/VDF*/DT*/Optus*/Telstra*/Telefonica*/Swisscom* 关键功能 NR MIMO: DL 4 x 4 MIMO: n1, n3, n7,n38, n41, n78, n79 UL 2 x 2 MIMO: n41, n78, n79 LTE MIMO: DL 4 x 4 MIMO: B1, B3 ,B7, B32, B34, B38, B39, B40, B41, B42 UL 1 x 1 MIMO Downlink: NR sub6: 4 x 4 MIMO 256QAM 1CC(4 layers) LTE: 4 x 4 MIMO 1024QAM 7CC(6CC 24 layers) Downlink: NR sub6: 2 x 2 MIMO 256QAM LTE: 1 x 1 MIMO 256QAM 功能 Voice:VoLTE SMS:SMS over IP(IMS)OS Drivers:Linux 4.1**/Android 9.0** GNSS:GPS/GLONASS/Galileo/
